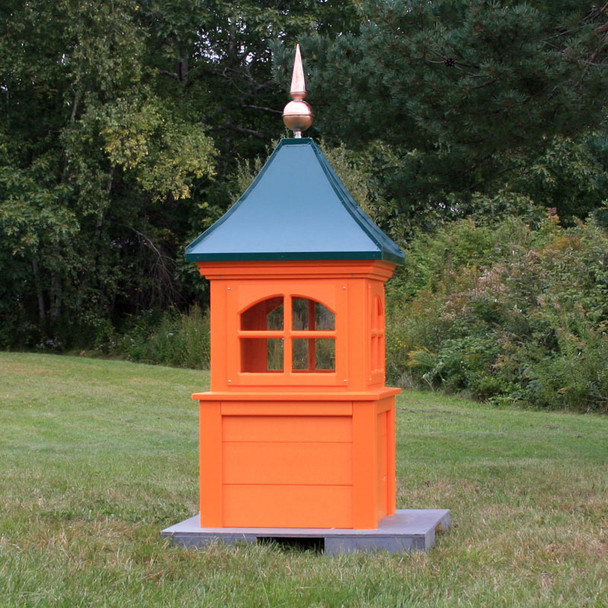

Colbrook PVC Color Cupola

Introducing the Columbia Maintenance Free PVC Color Cupola, a true masterpiece of American craftsmanship. Made in the USA with the highest quality materials, this classic roof style cupola is designed to elevate any building to new heights of elegance. The window cupola is constructed with double strength glass, providing both durability and stunning visual appeal. With a large selection of vibrant colors to choose from, you can customize your cupola to perfectly complement your structure. Additionally, the option to select either a copper or metal color roof further adds to its versatility and aesthetic appeal.

• Cupola Product Information

  PVC Evolve Color Cupola made from 3/4" solid evolve poly color lumber.


  Made with Double Strength Single Pane Glass and Easy Access Panel for Light Changes

  Cupola available sizes - 24", 30", 36", 42" 49", 60", 72" // Roof used for measurements

  Cupola Window Glass is all single pane double strength glass. (Window Cupolas are not designed for Skylights)

  Number of glass panes per cupola is determined by size of cupola. Example 24" - 36" cupola has 4 panes per side per side : 42" cupola has 6 panes per side, 48" cupola has 8 panes per side.

  Board Size: 3/4" Material is PVC ( Brand Name Evolve Lumber)

  Cupola Color Metal Roofing: Made by Galvalume, Galvalume is 55% Aluminum -45% Zinc coated Sheet product that is ideally suited for most types of roofing. The metal sheet is heat-formed to prevent microscopic cracking and the rust preventing paint coating as the panel is formed. This makes for a long lasting finish.

  Note: Cupola metal roof and lumber colors as as close as possible to actual colors: color shown may vary slightly from actual metal

  This cupola is available in maintenance-free vinyl and is weathervane ready with a 3/4 inch rod opening. Designed for up to a 8/12 pitch. Cupola roof is covered with standing seam copper or metal roofing is available.

  Cupola Dimensions: (approx)

  24" Cupola Dimensions - 24" Roof - 43" High

  30" Cupola Dimensions - 30" Roof - 53" High

  36" Cupola Dimensions - 36" Roof - 61" High

  42" Cupola Dimensions - 42" Roof - 67" High

  48" Cupola Dimensions - 48" Roof - 78" High

  60" Cupola Dimensions - 60" Roof - 93" High

  72" Cupola Dimensions - 72" Roof - 110" High

  Special Note: All cupolas are made to order. Cupolas are constructed in a 3 section design for ease of handing and installation

  Weathervanes sold separately.

  • Cupola Base Extensions are for 9/12 and up to 12/12 pitched roof lines.
  • The cupola comes weathervane ready with a 3/4" opening. Roof mounts are not needed if using a cupola.
  • Customers can request the weathervane opening be capped. For using the cupola without a weathervane.
  • The louver cupolas can be used for venting, be sure and have your carpenter flash around base to keep the water and moisture out. Window cupolas are not used for venting.
  • If not used for venting, the cupola can go right over the shingles.
  • It is the customer’s responsibility to cut the roof pitch into the cupola base to ensure proper fit.
  • The PVC Cupola is made from Poly Evolve Lumber.
