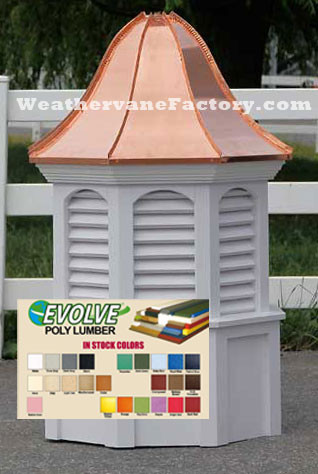

Manchester Color Cupola - Octagon Louvered Cupola

Introducing the Manchester PVC Color Cupola with Bell Roof Style, a pinnacle of American craftsmanship that offers timeless elegance and superior functionality. This octagon-shaped louvered cupola is expertly made in the USA, constructed with high-quality PVC material that requires virtually zero maintenance. You have the freedom to choose your desired PVC board color to perfectly complement your structure's aesthetics, as well as the option for a classic copper roof or durable color metal roofing. With its carefully crafted design, this cupola serves as an effective venting solution while adding a touch of traditional charm to any building.

Manchester Color Cupola Specifications

Product Information: PVC Color Octagon Cupola made from Evolve Color Lumber

Cupola available sizes - 24", 30", 36", 42" 49", 60", 72" // Roof used for measurements

Board Size: 3/4" Material is PVC ( Brand Name Evolve Lumber)

Copper: 16 oz copper which is the 24 gauge

Cupola Color Metal Roofing: Made by Galvalume, Galvalume is 55% Aluminum -45% Zinc coated Sheet product that is ideally suited for most types of roofing. The metal sheet is heat-formed to prevent microscopic cracking and the rust preventing paint coating as the panel is formed. This makes for a long lasting finish.

Note: Cupola Metal Roof Colors as as close as possible to actual colors: color shown may vary slightly from actual metal.

This cupola is available in maintenance-free color vinyl and is Weathervane ready with a 3/4 inch rod opening. Designed for up to a 8/12 pitch. Cupola roof is covered with standing seam copper or metal roofing is available.

Cupola Dimensions: (approx) Cupola Roof used for measurements, Octagon Cupolas are measured from the largest part of the cupola roof which is measured flat to flat on this style of cupola.

24" Cupola Dimensions - 24" Roof - 43" High

30" Cupola Dimensions - 30" Roof - 52" High

36" Cupola Dimensions - 36" Roof - 60" High

42" Cupola Dimensions - 42" Roof - 67" High

48" Cupola Dimensions - 48" Roof - 75" High

60" Cupola Dimensions - 60" Roof - 89" High

72" Cupola Dimensions - 72" Roof - 104" High

Special Note: All cupolas are made to order. Cupolas are constructed in a 3 section design for ease of handing and installation

Weathervanes sold separately.

• Cupola Base Extensions are for 9/12 up to 12/12 pitched roof lines.
• The cupola comes Weathervane ready with a 3/4" opening. Roof mounts are not needed if using a cupola.
• Customers can request the Weathervane opening be capped. For using the cupola without a Weathervane.
• The louver cupolas can be used for venting, be sure and have your carpenter flash around base to keep the water and moisture out. Window cupolas are not used for venting.
• If not used for venting, the cupola can go right over the shingles.
• It is the customer’s responsibility to cut the roof pitch into the cupola base to ensure proper fit.
• This Cupola is made from Evolve Color Lumber (PVC)

• Painting PVC Cupolas - Our PVC Cupolas can be painted but you need to use an acrylic latex paint that has a light reflective value of at least 55 or greater. Black and other dark paint colors can cause the PVC to warp. When painting your new cupola always check with your local paint shop to get the best paint possible. Any use of dark paints will void our warranty on the cupola, bird feeders and other PVC products.
•
