Sheridan Cupola - Sheet Metal Cupolas

Elevate your home’s architectural elegance with the Sheridan Cupola, a stunning blend of artistry and durability that redefines outdoor aesthetics. Crafted with meticulous attention to detail, this heavy-duty window cupola boasts custom rounded edges and a beautifully decorative curve that effortlessly enhances any structure. Made in the USA from premium Galvalume color coil and finished with Sherwin-Williams’ Weather XL coatings, it promises both longevity and vibrant beauty, ensuring your cupola remains a striking focal point for years to come.

Metal Cupola Product Information

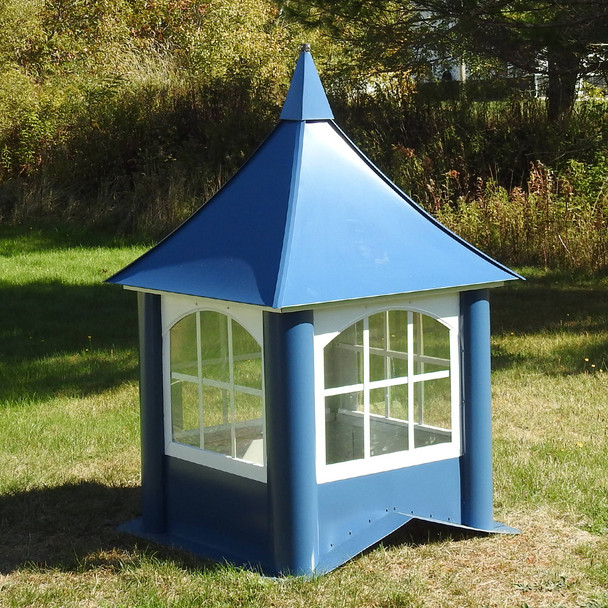

Cupola shown is the 44" Size with the 4/12 Base

Colors Cupolas shown: Gallery Blue and Brite White

Weathervane Shown with this Cupola are the 778 Coho Salmon Weathervane, the 473 Sailboat Weathervane and the 387 Dove Weathervane: These are examples to show how the weathervane will mount to the cupola. All Weathervanes are Sold Separate

Cupola Dimensions: (approx)

32" Cupola Dimensions - 32" Roof - 50" High

38" Cupola Dimensions - 38" Roof - 64" High

44" Cupola Dimensions - 44" Roof - 70" High

50" Cupola Dimensions - 50" Roof - 75" High

56" Cupola Dimensions - 56" Roof - 80" High

Cupolas are Custom made from Galvalume Coil with Sherwin-Williams Color Coatings - Weather XL

Cupola available sizes - 32" - 56" // Square of Cupola Roof used for measurements/

These are Maintenance Free Cupolas

Each Cupola is Made to Order, customer will choose the colors from our selection of Weather XL Colors, and the roof pitch up to a 12/12. Since Each Cupola is custom made to customer specifications which include customer roof pitch base and customer color choices, no returns will be authorized!

All our Sheet Metal Cupolas will come with our Tall Select Roof Style.

WeatherXL - Colors by Sherwin-Williams

For extreme conditions, our silicone-modified polyester (SMP) formula means stronger protection, more durability, and better metal paint endurance.

Bigger, bolder silicone modified polyester (SMP) coatings are cutting-edge formulations each feature a two-coat finish recognized for its durability, offering even stronger protection and endurance during extreme conditions than its predecessor.

Created to withstand most anything that comes it's way, our specially formulated WeatherXL silicone-modified polyester coating is designed to go where it will be abused - maintaining extreme resistance to abrasion, chipping, and marring with tremendous color and gloss retention.

Galvalume Metal is able to withstand up to 140MPH Wind Rating and is Engineer Certified.

Galvalume Metal Cupolas made with Aluminum, Zinc and Steel and are not designed to rust, but can have the paint and material wear faster in salt water areas.

Warning Warning Warning !

This cupola is designed to fit our Copper Weathervanes and Copper Finials! Imported copper weathervanes and finials will not work with this cupola's internal weathervane brace system which utilizes the United States Standard thread (USS thread). Inside each of our Sheet Metal Cupolas is a 1/2" Standard Threaded Bolt that will screw into the bottom of our Copper Weathervane or Finial Rods.

• It is the customer’s responsibility to choose the correct roof pitch when ordering their cupola. This is a custom made cupola designed to only fit the roofing pitch that the customer chooses. No adjustments can be made after the cupola has been made.
• Our Extended Rod will not be used in this cupola for extra height because the bottom of the extended rod does not have threads. Please do not purchase the extended rod with your weathervane and this cupola.

Mounting Cupola to Metal Roofs.

The use of Self tapping Roofing Screws is the recommended mounting system. Screws are not included in the purchase.

Drive the screw right into the Standing Seam Points around the roof or right into the shingles.

The roofing screws have a rubber gasket around the head and this will set and seal the screw.

Galvalume Cupolas are made for the elements, so no maintenance is required.
